With the expansion of businesses and the use of larger warehouses to store goods, shelving systems have become more important. For this purpose, various shelving systems, including the Mobile Rack Storage System, were designed and produced to maintain load density in the warehouse space, save money and make the circulation of goods / materials in the warehouse easier than before.
Mobile Rack Shelving may be vague to you and you are not familiar with this system. This storage system has very unique features that allow for better management of warehouse space and for this reason, its use is increasing day by day. In this type of shelving, the aisles between the shelves are normally eliminated, which makes maximum use of the warehouse space.

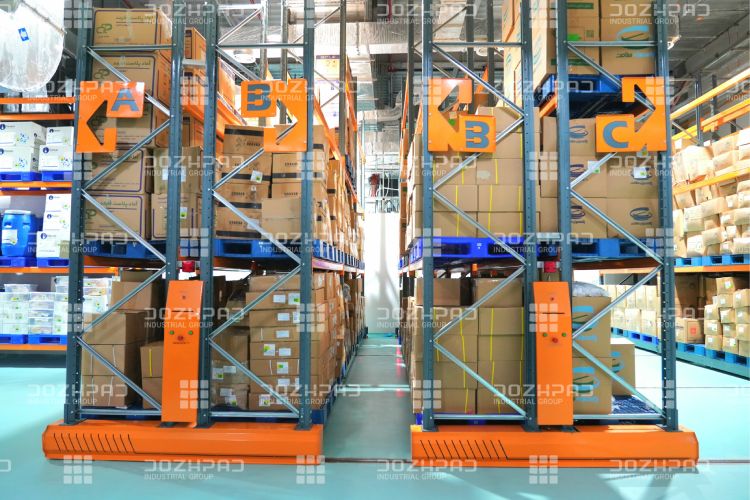

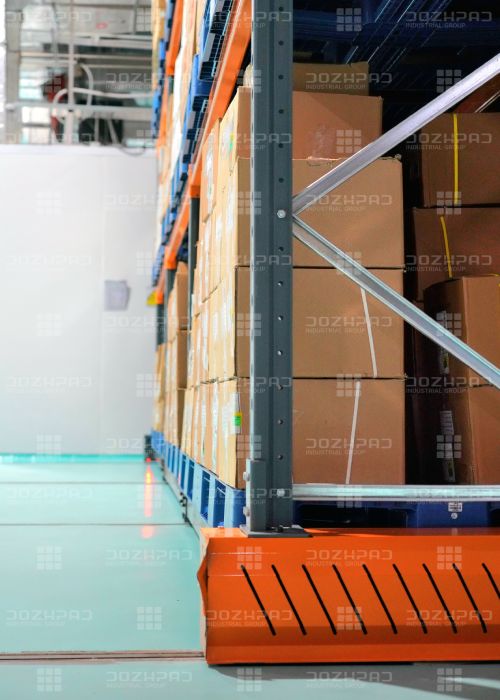

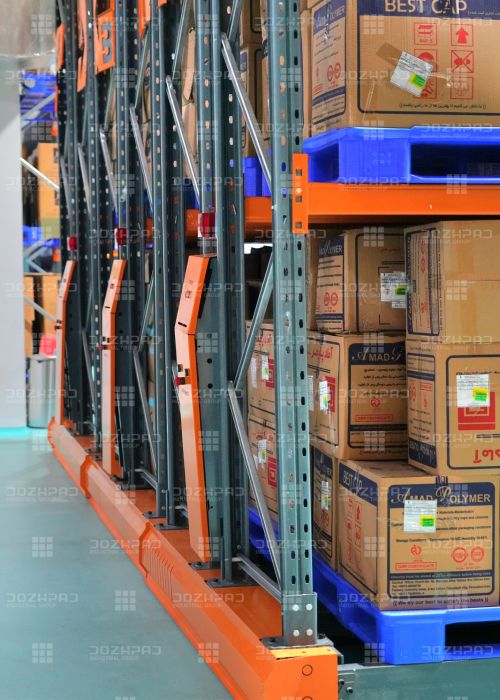

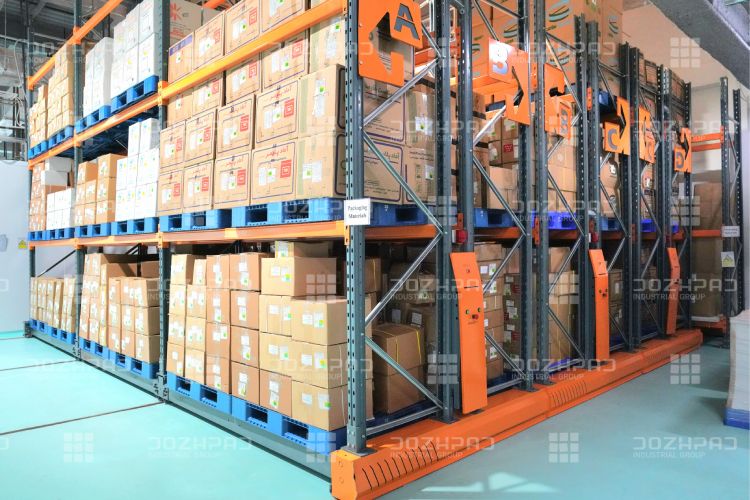

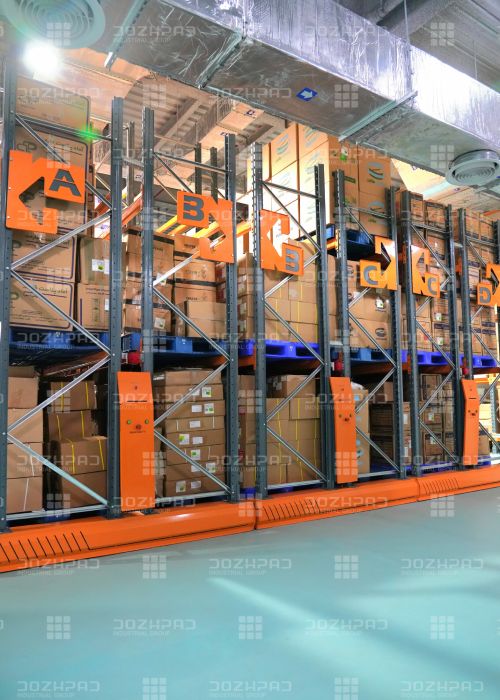

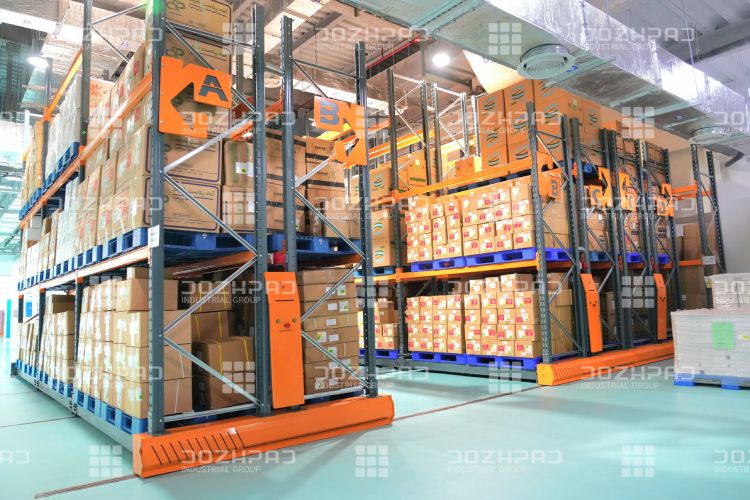

The shelving structure is installed on motorized mobile chassis and these chassis move on rails on the warehouse floor; Therefore, when the operator executes the movement command, the shelves start moving and the desired aisle for placing and retrieving items is easily opened and closed. In an opened aisle, you can easily access unit loads without having to move the shelves. This feature of warehouse shelving increases warehouse utilization by 95% and also leads to a significant reduction in warehouse costs; therefore, although the cost of purchasing and implementing shelving increases compared to a static pallet rack system, the investment cost will be greatly reduced.
The Dejpad Mobile Rack Storage System enables maximum utilization of warehouse space and space by minimizing the number of aisles required between rows of shelving; while you will have access to all pallets without the need for any additional movement.

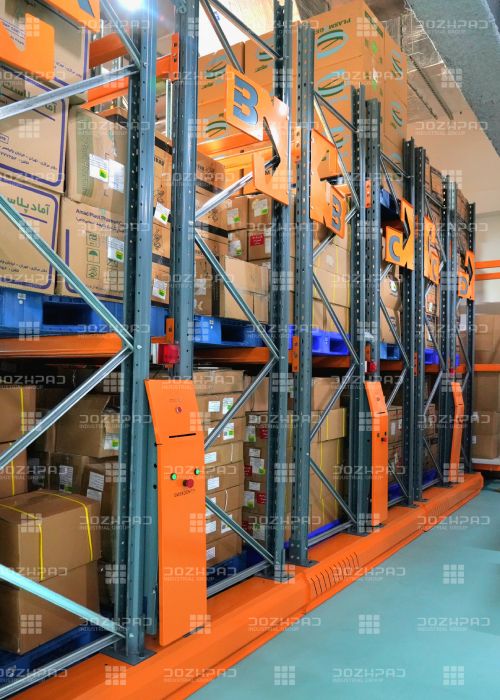

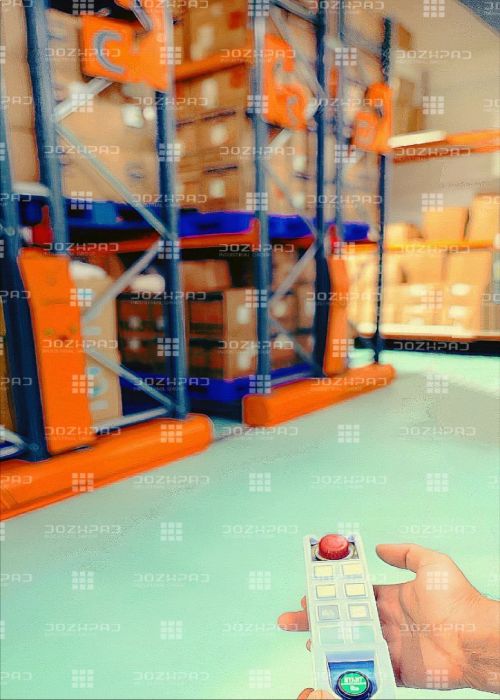

It is possible to issue a movement command using a remote control (panels located on the shelving blocks) and also by using a warehouse management system (WMS).
The physical characteristics and color of the structure of this system are similar to the pallet rack storage system.
By using the Dejpad mobile pallet rack storage system, the space required for storing a certain number of pallets is reduced by half or, in a fixed space, twice the normal load storage capacity is provided.
| Scales chart | Warehouse volume (m3) | Warehouse area (m2) | SKU (stock item variety) | Loading/unloading system | Risk of damage to goods | Speed of access to goods |
| Mobile Rock | 18000 | 1650 | 4000 | FIFO | Low | 1 |
| Highway | 24500 | 2300 | 150/200 | LIFO | Medium | 5 |
| Narrow corridor | 25800 | 2350 | 4000 | FIFO | Low | 1 |
| Self-return | 27100 | 2400 | 1000 | LIFO | Medium | 1 |
| Pallet Rock | 33600 | 3050 | 4000 | FIFO | Low | 2 |
Applications of mobile rock pallets (mobile rock)
- Cold storage
- Semi-finished and finished product warehouse
- Distribution centers
Features of Mobile Rock Pallet Racking (Mobile Rock)
- Bolted and nut connections of system components (arm-to-column flanges and tongues);
- Possibility of direct and selective access to all stored items;
- Saving in warehouse space by eliminating access corridors and reducing it to one corridor and increasing warehouse capacity up to twice in the same space;
- Possibility of centralizing warehouses and their integrated management;
- Reducing operating costs due to optimal use of space;
- Ability to upgrade warehouse automation and operate the warehouse management system (WMS);
- Creating the necessary safety for stored loads;
- Managing warehouse inventories with appropriate efficiency;
- Creating high operational throughput in the warehouse;
- Engineered and reliable installation;
- Dimensional diversity (depth-span-height);
- Load-bearing capacity diversity;
- Ability to use fork-lift trucks for placing/removing unit loads;
- Applicable in environments with temperatures from -30 to +45 degrees Celsius;
- Possibility of changing the vertical position of the shelves (arms) with a step of 76 mm;
